网络安全原理实验 1——Wireshark 抓包分析三次握手
抓包
我抓的是 QFNU 官网:https://www.qfnu.edu.cn/

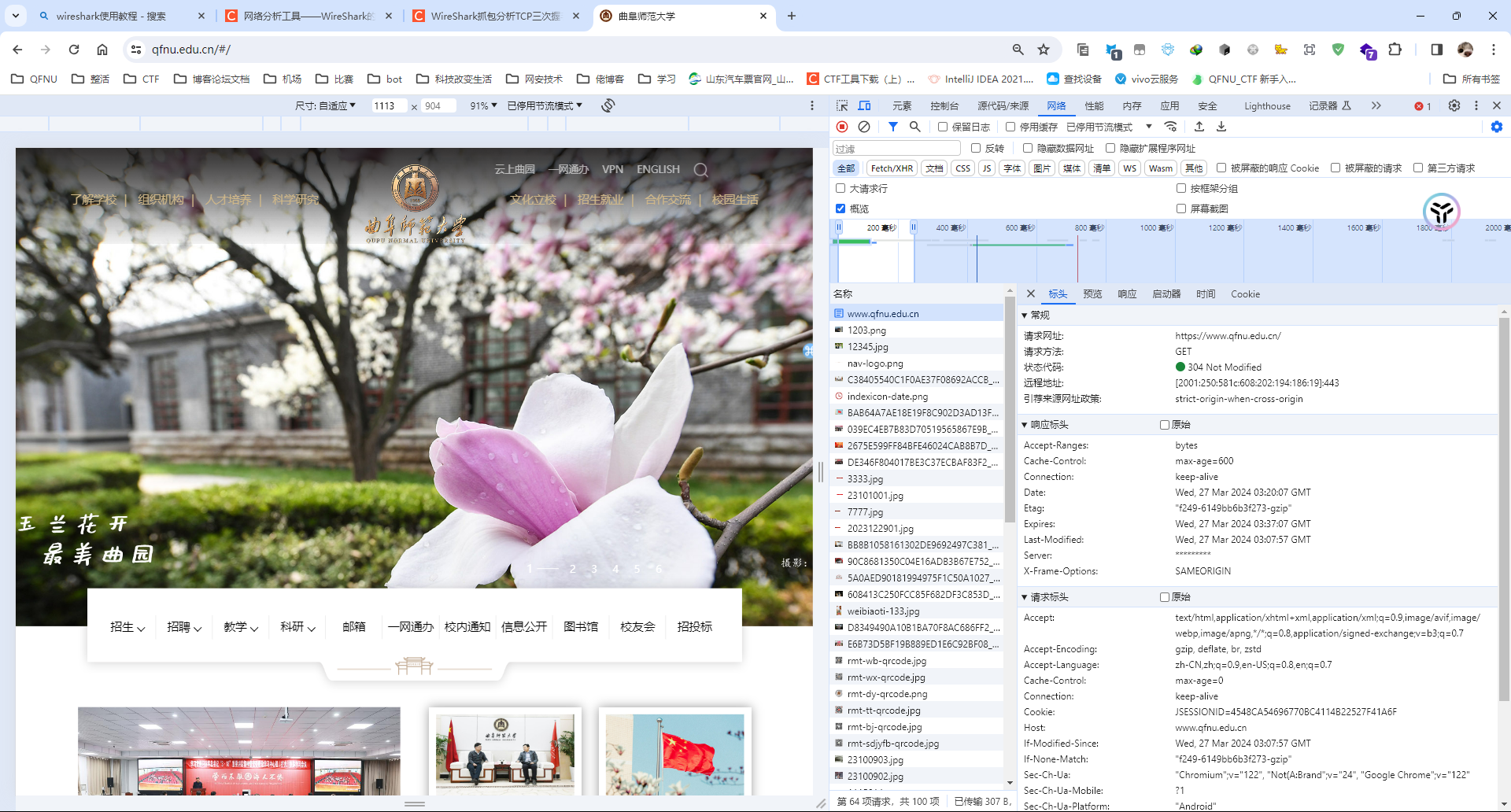

找到 IPv6 地址

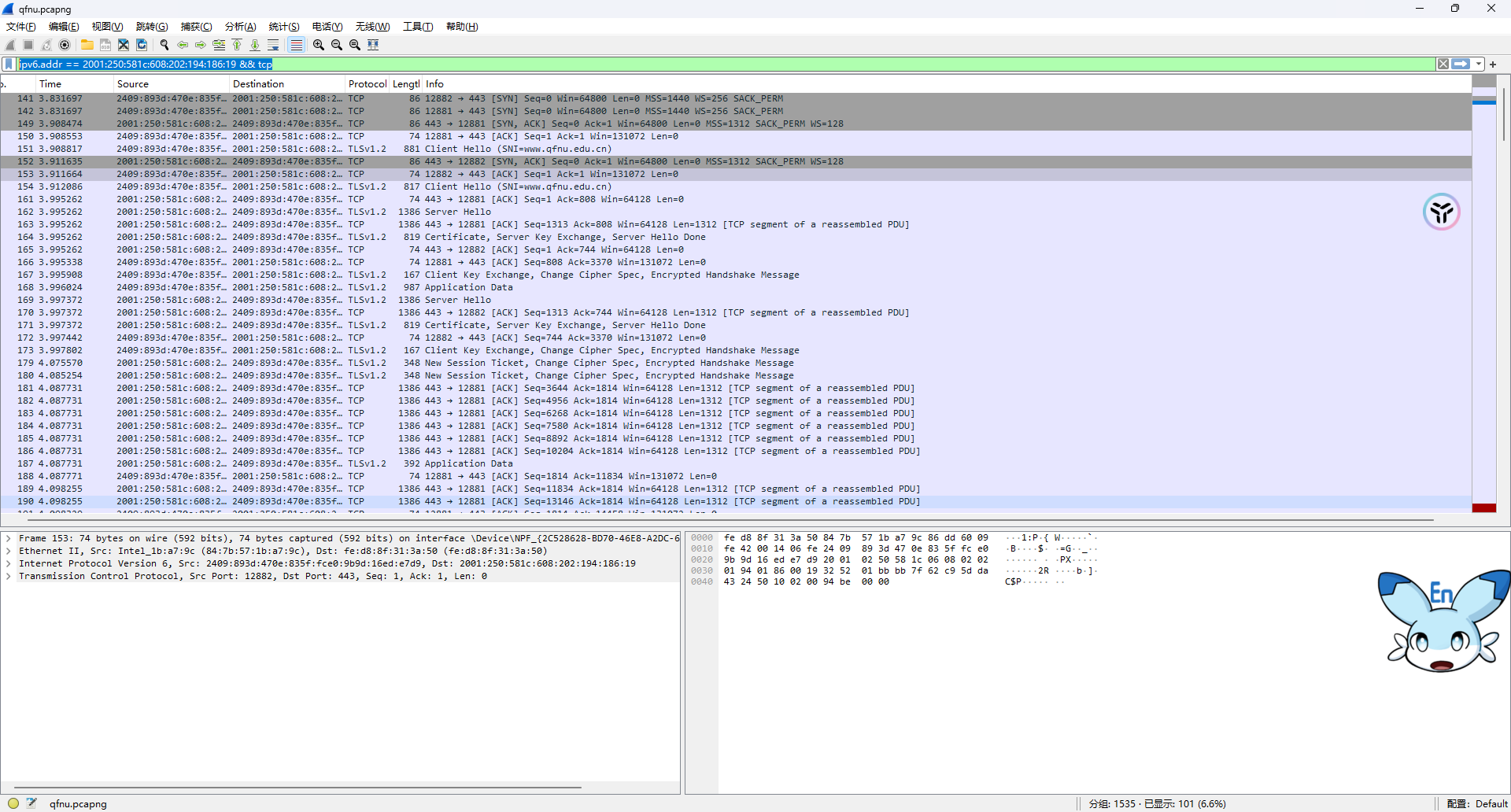

过滤包
过滤器输入以下内容过滤出 IP 地址的 tcp 协议包
1
| ipv6.addr == 2001:250:581c:608:202:194:186:19 && tcp
|
分析 tcp 包
第一次握手包
报文数据
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36
| Frame 152: 86 bytes on wire (688 bits), 86 bytes captured (688 bits) on interface \Device\NPF_{2C528628-BD70-46E8-A2DC-6A91B43D20AE}, id 0 Ethernet II, Src: fe:d8:8f:31:3a:50 (fe:d8:8f:31:3a:50), Dst: Intel_1b:a7:9c (84:7b:57:1b:a7:9c) Internet Protocol Version 6, Src: 2001:250:581c:608:202:194:186:19, Dst: 2409:893d:470e:835f:fce0:9b9d:16ed:e7d9 Transmission Control Protocol, Src Port: 443, Dst Port: 12882, Seq: 0, Ack: 1, Len: 0 Source Port: 443 Destination Port: 12882 [Stream index: 30] [Conversation completeness: Complete, WITH_DATA (47)] [TCP Segment Len: 0] Sequence Number: 0 (relative sequence number) Sequence Number (raw): 1574585123 [Next Sequence Number: 1 (relative sequence number)] Acknowledgment Number: 1 (relative ack number) Acknowledgment number (raw): 3145687753 1000 .... = Header Length: 32 bytes (8) Flags: 0x012 (SYN, ACK) 000. .... .... = Reserved: Not set ...0 .... .... = Accurate ECN: Not set .... 0... .... = Congestion Window Reduced: Not set .... .0.. .... = ECN-Echo: Not set .... ..0. .... = Urgent: Not set .... ...1 .... = Acknowledgment: Set .... .... 0... = Push: Not set .... .... .0.. = Reset: Not set .... .... ..1. = Syn: Set .... .... ...0 = Fin: Not set [TCP Flags: ·······A··S·] Window: 64800 [Calculated window size: 64800] Checksum: 0xea7c [unverified] [Checksum Status: Unverified] Urgent Pointer: 0 Options: (12 bytes), Maximum segment size, No-Operation (NOP), No-Operation (NOP), SACK permitted, No-Operation (NOP), Window scale [Timestamps] [SEQ/ACK analysis]
|
分析
- Ethernet II:以太网 II 帧格式,包括源 MAC 地址和目的 MAC 地址。
- 源 MAC 地址:fe: d8: 8f: 31: 3a: 50
- 目的 MAC 地址:84: 7b: 57: 1b: a7: 9c
- Internet Protocol Version 6 (IPv6):IPv6 协议,包括源 IPv6 地址和目的 IPv6 地址。
- 源 IPv6 地址:2001: 250: 581c: 608: 202: 194: 186: 19
- 目的 IPv6 地址:2409: 893d: 470e: 835f: fce0: 9b9d: 16ed: e7d9
- Transmission Control Protocol (TCP):传输控制协议,描述了 TCP 连接的细节。
- 源端口号:443
- 目的端口号:12882
- 序列号 (Sequence Number):0
- 确认号 (Acknowledgment Number):1
- 标志 (Flags):SYN 和 ACK 均置位,表示这是一个带有 SYN 和 ACK 标志的握手包。
- 窗口大小 (Window Size):64800
- 选项 (Options):最大段大小 (Maximum segment size),无操作 (NOP),选择确认(SACK permitted),无操作 (NOP),窗口缩放 (Window scale)。
- 时间戳 (Timestamps):包含了时间戳选项。
- 检验和 (Checksum):0xea7c
第二次握手包分析
报文数据
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36
| Frame 153: 74 bytes on wire (592 bits), 74 bytes captured (592 bits) on interface \Device\NPF_{2C528628-BD70-46E8-A2DC-6A91B43D20AE}, id 0 Ethernet II, Src: Intel_1b:a7:9c (84:7b:57:1b:a7:9c), Dst: fe:d8:8f:31:3a:50 (fe:d8:8f:31:3a:50) Internet Protocol Version 6, Src: 2409:893d:470e:835f:fce0:9b9d:16ed:e7d9, Dst: 2001:250:581c:608:202:194:186:19 Transmission Control Protocol, Src Port: 12882, Dst Port: 443, Seq: 1, Ack: 1, Len: 0 Source Port: 12882 Destination Port: 443 [Stream index: 30] [Conversation completeness: Complete, WITH_DATA (47)] [TCP Segment Len: 0] Sequence Number: 1 (relative sequence number) Sequence Number (raw): 3145687753 [Next Sequence Number: 1 (relative sequence number)] Acknowledgment Number: 1 (relative ack number) Acknowledgment number (raw): 1574585124 0101 .... = Header Length: 20 bytes (5) Flags: 0x010 (ACK) 000. .... .... = Reserved: Not set ...0 .... .... = Accurate ECN: Not set .... 0... .... = Congestion Window Reduced: Not set .... .0.. .... = ECN-Echo: Not set .... ..0. .... = Urgent: Not set .... ...1 .... = Acknowledgment: Set .... .... 0... = Push: Not set .... .... .0.. = Reset: Not set .... .... ..0. = Syn: Not set .... .... ...0 = Fin: Not set [TCP Flags: ·······A····] Window: 512 [Calculated window size: 131072] [Window size scaling factor: 256] Checksum: 0x94be [unverified] [Checksum Status: Unverified] Urgent Pointer: 0 [Timestamps] [SEQ/ACK analysis]
|
分析
- 帧信息:
- 数据长度:74字节,592位。
- 源地址(Src):Intel_1b:a7:9c (84:7b:57:1b:a7:9c)
- 目标地址(Dst):fe:d8:8f:31:3a:50
- 网络协议:
- IPv6:源IP地址为2409:893d:470e:835f:fce0:9b9d:16ed:e7d9,目标IP地址为2001:250:581c:608:202:194:186:19。
- 传输层协议:
- TCP:
- 源端口(Src Port):12882
- 目标端口(Dst Port):443
- 序列号(Sequence Number):1,表示本次发送的数据段序列号。
- 确认号(Acknowledgment Number):1,表示期望接收到的下一个数据段的序列号。
- 标志(Flags):ACK(Acknowledgment),表示确认号字段有效。
- 窗口大小(Window):512,表示发送端的接收缓冲区大小。
- 校验和(Checksum):0x94be。
- 时间戳(Timestamps):该选项在此包中未提供具体值。
- 其他信息:
- 会话完整性(Conversation completeness):完整,有数据传输。
- TCP段长度(TCP Segment Len):0,表示此包中未包含数据。
第三次握手包
报文数据
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36
| Frame 161: 74 bytes on wire (592 bits), 74 bytes captured (592 bits) on interface \Device\NPF_{2C528628-BD70-46E8-A2DC-6A91B43D20AE}, id 0 Ethernet II, Src: fe:d8:8f:31:3a:50 (fe:d8:8f:31:3a:50), Dst: Intel_1b:a7:9c (84:7b:57:1b:a7:9c) Internet Protocol Version 6, Src: 2001:250:581c:608:202:194:186:19, Dst: 2409:893d:470e:835f:fce0:9b9d:16ed:e7d9 Transmission Control Protocol, Src Port: 443, Dst Port: 12881, Seq: 1, Ack: 808, Len: 0 Source Port: 443 Destination Port: 12881 [Stream index: 31] [Conversation completeness: Complete, WITH_DATA (47)] [TCP Segment Len: 0] Sequence Number: 1 (relative sequence number) Sequence Number (raw): 839341445 [Next Sequence Number: 1 (relative sequence number)] Acknowledgment Number: 808 (relative ack number) Acknowledgment number (raw): 1312419164 0101 .... = Header Length: 20 bytes (5) Flags: 0x010 (ACK) 000. .... .... = Reserved: Not set ...0 .... .... = Accurate ECN: Not set .... 0... .... = Congestion Window Reduced: Not set .... .0.. .... = ECN-Echo: Not set .... ..0. .... = Urgent: Not set .... ...1 .... = Acknowledgment: Set .... .... 0... = Push: Not set .... .... .0.. = Reset: Not set .... .... ..0. = Syn: Not set .... .... ...0 = Fin: Not set [TCP Flags: ·······A····] Window: 501 [Calculated window size: 64128] [Window size scaling factor: 128] Checksum: 0x220d [unverified] [Checksum Status: Unverified] Urgent Pointer: 0 [Timestamps] [SEQ/ACK analysis]
|
分析
帧信息:
- 数据长度:74字节,592位。
- 源地址(Src):fe:d8:8f:31:3a:50
- 目标地址(Dst):Intel_1b:a7:9c (84:7b:57:1b:a7:9c)
网络协议:
- IPv6:源IP地址为2001:250:581c:608:202:194:186:19,目标IP地址为2409:893d:470e:835f:fce0:9b9d:16ed:e7d9。
传输层协议:
- TCP:
- 源端口(Src Port):443
- 目标端口(Dst Port):12881
- 序列号(Sequence Number):1,表示本次发送的数据段序列号。
- 确认号(Acknowledgment Number):808,表示接收到的下一个期望的数据段序列号。
- 标志(Flags):ACK(Acknowledgment),表示确认号字段有效。
- 窗口大小(Window):501,表示发送端的接收缓冲区大小。
- 校验和(Checksum):0x220d。
其他信息:
- 会话完整性(Conversation completeness):完整,有数据传输。
- TCP段长度(TCP Segment Len):0,表示此包中未包含数据。
